The standard widths of our gates are 3' (.90mt). All our gates are made to your specification; maximum width is 6' (1.8mt). No gates are kept in stock so call in the yard or ring us with the size required and we can make it for you, normally within the week. In general all our gates are made on a 3"x 2" (75 x 50mm nominal size) timber frame, mortised on four corners with the appropriate struts in place, all pressure treated green. Our timber frames are planed with eased edges and stress graded to a standard C16 to C24.
Picket gate pales come in rounded tops, pointed tops or flat tops.
Posts suitable for these Gates.
4"x 4" (100x100mm) and come in 9' (2.7mt), 8' (2.4mt), 7' (2.1mt), and 6' (1.8mt) long.
3"x3" (75x75mm) and come in 9' (2.7mt), 8' (2.4mt), 7' (2.1mt), 6' (1.8mt), and 5' (1.5mt) long.
We carry a range of gate posts sizes: 4"x 4" (100x100mm) and 3"x 3" (75x75mm). All our posts are home grown and pressure treated green to a British standard.
The KD treated posts are guaranteed for 15 years against rot, these have been kiln dried for 5 days prior to pressure treating.
All measures stated on this product is metric, the imperial measure is approximate.
Furniture for this size Gate.
Hinges
Medium Tee Hinges: 12" (300mm), 15" (380mm), 18" (460mm), 20" (510mm) and 24" (610mm).
Adjustable Gate Hinges: 18" (460mm) and 24" (610mm).
Adjustable Gate Hinges Cranked: 18" (460mm) and 24" (610mm).
Hooks & Rides: 18" (460mm).
Latches & Keeps
Auto Gate Latches: Light & Heavy.
Suffolk Latch:
Gate Return Spring: 8" (200mm).
Tower Bolts: 6" (150mm) and 8" (200mm).
Garage Door Drop Bolts and Lockable.
Pad-
H. Duty Pad-
Pad-
H. Duty Pad-
Hasp and Staple: Large /Small.
Hasp and Staple: Large and lockable.
Cabin Hooks: 6" (150mm) and 4" (100mm).
All these Hinges, Latches and Keeps come in Galvanised and Black.
Entrance Gates.
Balmoral – Convex.*
Balmoral – Concave.*
Windsor.*
Haydon.*
Ottervale.*
Maximum gate width for entrance gates is 6' (1.8mt) per leaf, sizes
wider than this not recommended. Standard height is 6' on shoulder.
All these gates are supplied by our gate makers.
All the softwood gates are pressure treated green to a British standard.
* Not always in stock. Please order in advance.

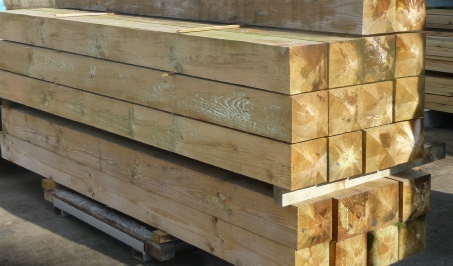

Posts for Entrance Gates.
Sizes are:
8"x 8" (200x200mm) and in 9' (2.7mt) and 8' (2.4mt) long.
7"x 7" (175x175mm) and in 9' (2.7mt), 8' (2.4mt) and 7' (2.1mt) long.
6"x 6" (150x150mm) and in 9' (2.7mt), 8' (2.4mt) and 7' (2.1mt) long.
All our posts are home grown and pressure treated green to a British
Standard, and are all 4 way weathered.
All measures stated on this product is metric, the imperial measure is approximate.
Framed Side Gates.
Picket Gates:
Picket slats nailed vertical to a 3"x 2" (75 x 50mm) timber frame.
Larch Lap Gates:
Larch Lap slats nailed horizontal inside a 3"x 2" (75 x 50mm) timber frame.
Feather Edge Gates:
Feather Edge Slats nailed vertical to a 3"x 2" (75 x 50mm) timber frame.
Trellis Gates:
Heavy duty batten 1½" x ¾" (38 x18mm) nailed vertical to a 3"x 2" (75 x 50mm) timber frame.

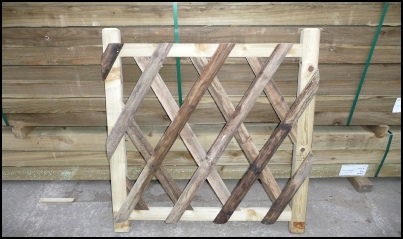

Diagonal Trellis Gates:
Heavy duty batten 1½" x ¾" (38 x18mm) nailed diagonally to a 3"x 2" (75 x 50mm) timber frame.
Diagonal ½rd Trellis Gates: ½rd rails 2½" (63mm) nailed diagonally to a 3"x 2" (75 x 50mm) timber frame.
T&G Gates: T&G timber nailed vertical to a 3"x 2" (75 x 50mm) timber frame.
Garden Gates
Picket Gate
Feather Edge Gate
Trellis Gate
Balmoral
Windsor
Haydon
